LTO/DLT Tape Waterproof Protective Case - 28 Capacity (Wheeled)

SKU 07-735002
Original price $345.00 - Original price $345.00
Original price
$345.00 - $345.00
Current price $345.00

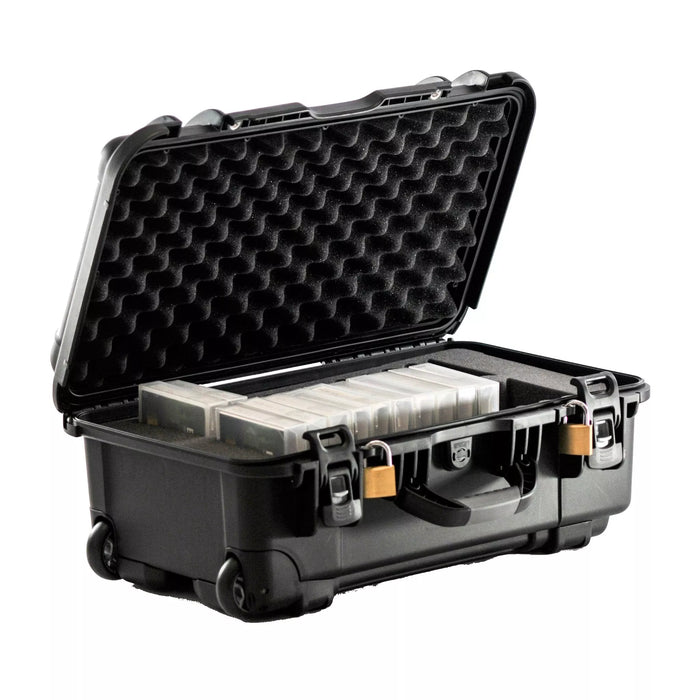

This dustproof, wheeled, waterproof heavy duty case has a foam insert designed to hold 28 LTO or DLT tapes with their plastic "jewel" boxes.

*Not recommended for tapes without jewel boxes as exposed foam can generate harmful debris

Download Data Sheet

Product Features and Benefits

  • Wheels

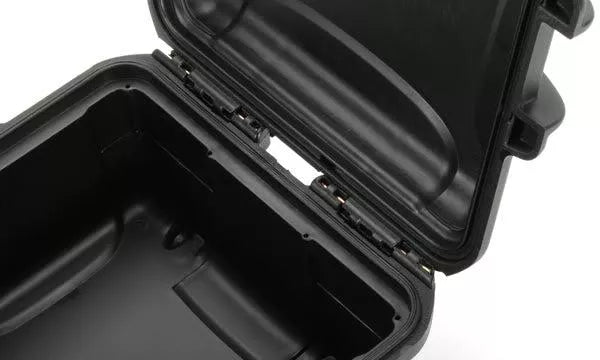

  • Heavy duty construction - crushproof
  • Rust-proof stainless steel hardware

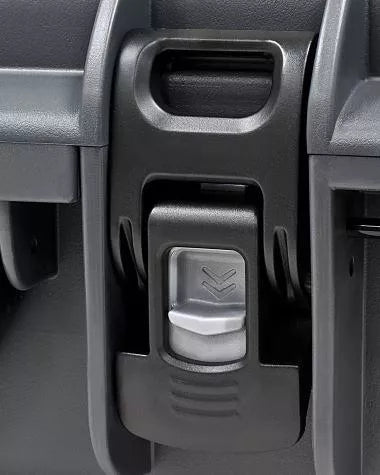

  • Double movement latches prevent accidental opening

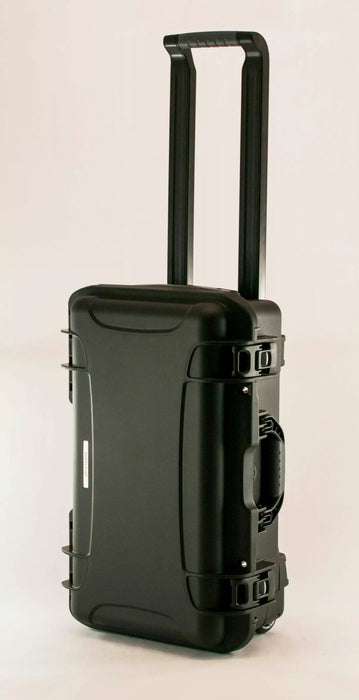

  • Ergonomic, easy to grip telescoping handle
  • Made in North America
  • ATA Impact Certified

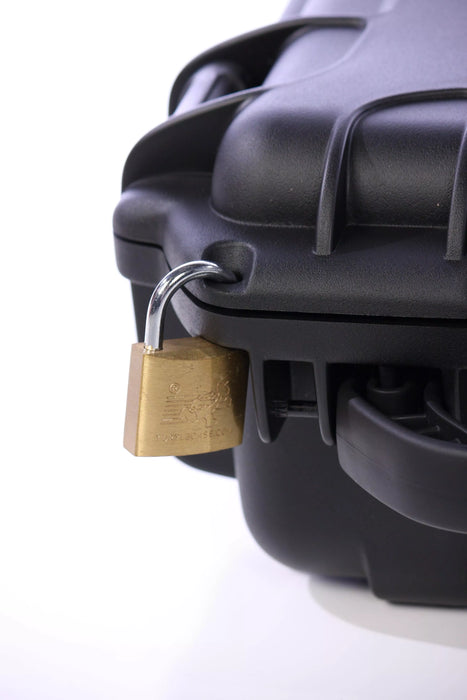

  • Double padlockable
  • Lifetime warranty

Product Specifications

  • Weight: 13.6 lbs
  • Inside Dimensions: 20.5" x 11.3" x 7.5"
  • Outside Dimensions: 22" x 14" x 9"
Shipping dims: 23" x 14" x 9"
Shipping weight: 15 lbs

Note: For proper fit, the LTO cartridges must be placed inside their plastic "jewel" boxes. For LTO cartridges to be stored/transported without their plastic jewel boxes see TeraTurtle listings.

Compatible Locks

    Waterproof  IPX7
    Dustproof  IP6X
    Impact  ATA 300
    Drop Test  ASTM D-4169 CC-18
    Vibration  STM D-4169 DC-18
    Rainfall  ASTM D-4169 DCc-18
    Immersion  MIL-STD-810F

    Descriptions of Tests
    ATA Specification 300 Category 1
    Airline transport container suitable for a minimum of 100 airline trips
    Impact Resistance Test; samples were exposed to impact using a bar weighing 13.2lbs with a hemispherical end of 3.2cm. Bar was dropped with its longitudinal axis vertical on to each sample’s weakest point from a height of 0.5m. Samples were conditioned to a temperature of -20°C before impact exposure.

    ASTM D-4169 DC-18
    Level 1 Schedule A Handling (Manual)
    Drop tests - a series of drops on each edge, corner and face of the case from a height of no less than 48 cm (19”) and with loads of 6.8-31.8 kg (15-70 lbs) determined by case size. Samples were conditioned at lab ambient conditions and then temperatures of -28°C and +60°C for a minimum of 3 hours at each condition.

    ASTM D-4169 DC-18
    Level 1, Schedule F loose load vibration
    Vibration - The cases are tested using test method D-999 to determine the ability to withstand the repetitive shocks occurred during transportation of loose loads.

    ASTM D-4169 DC-18
    Level 1, Schedule H Environmental Hazard Rainfall
    Simulated rainfall for 2 hrs at a rate of 10 cm/hr (4”). Samples were conditioned to -20 degrees C and +52 degrees C.

    Method 512.4
    Immersion - The case is submerged in a basin of water to a depth of 1 meter (3.28 ft) to the top most part of the case for 30 minutes. The case is heated to 10 degrees F higher than the temperature of the water.
    IP 67 ingress protection
    6- Total protection from dust
    7- Protected against the effects of immersion between 15 cm (5.9”) and 1m (39.37”)
