TeraTurtle 3592 Premium Protective Case - 30 Capacity

SKU 07-039014
Original price $303.00 - Original price $303.00
Original price
$303.00
$303.00 - $303.00
Current price $303.00

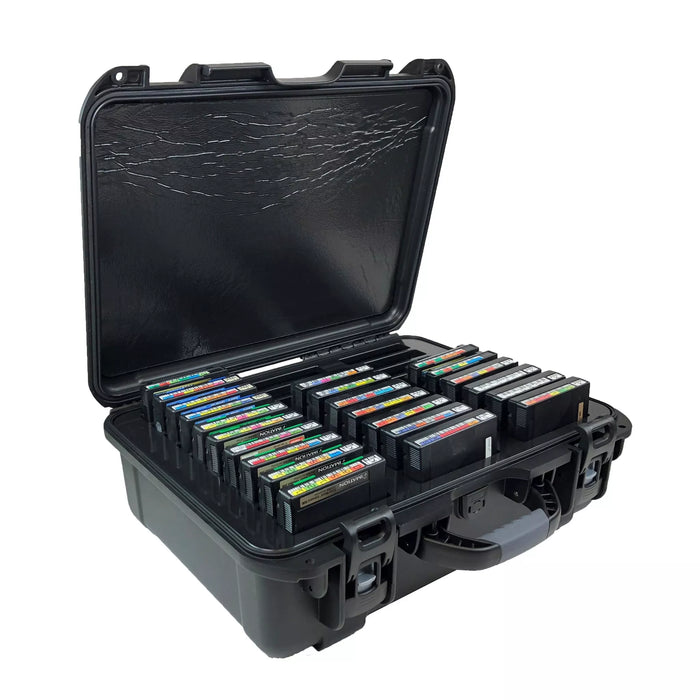

This waterproof heavy duty case stores 30 3592/T10K tapes and provides protection against the key problems that cause data loss:

  • physical damage from impact
  • tape distortion from wound-in debris
  • fast and large changes in temperature and humidity
Download Data Sheet
    Features
    • Waterproof
    • Superior cushioning and no exposed foam or debris generating agents
    • Individual slots for each tape
    • Dustproof
    • ATA Impact certified
    • Stainless steel hardware

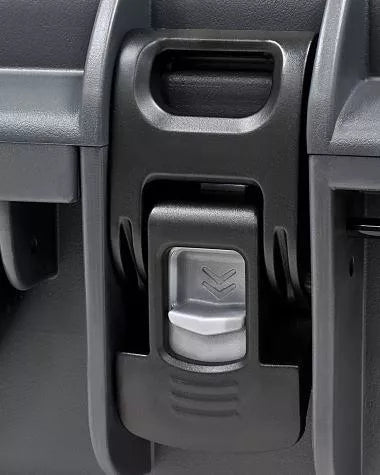

    • Double movement latches prevent accidental opening

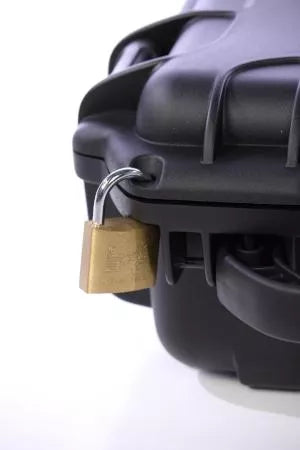

    • Double padlockable
    • Lifetime warranty
    Shipping dims: 20" x 17" x 8"
    Shipping weight: 10 lbs

    Compatible Locks

      Certifications

      Waterproof IPX7
      Dustproof  IP6X
      Impact  ATA 300
      Drop Test  ASTM D-4169 CC-18
      Vibration  STM D-4169 DC-18
      Rainfall  ASTM D-4169 DCc-18
      Immersion  MIL-STD-810F


      Descriptions of Tests
      ATA Specification 300 Category 1
      Airline transport container suitable for a minimum of 100 airline trips
      Impact Resistance Test; samples were exposed to impact using a bar weighing 13.2lbs with a hemispherical end of 3.2cm.
      Bar was dropped with its longitudinal axis vertical on to each sample’s weakest point from a height of 0.5m. Samples were conditioned to a temperature of -20°C before impact exposure.


      ASTM D-4169 DC-18
      Level 1 Schedule A Handling (Manual)
      Drop tests - a series of drops on each edge, corner and face of the case from a height of no less than 48cm(19”) and with loads of 6.8-31.8kg(15-70lbs) determined by case size.
      Samples were conditioned at lab ambient conditions and then temperatures of -28°C and +60°C for a minimum of 3 hours at each condition.


      ASTM D-4169 DC-18
      Level 1, Schedule F loose load vibration
      Vibration - The cases are tested using test method D-999 to determine the ability to withstand the repetitive shocks occurred during transportation of loose loads.


      ASTM D-4169 DC-18
      Level 1, Schedule H Environmental Hazard Rainfall
      Simulated rainfall for 2hrs at a rate of 10cm/hr (4”). Samples were conditioned to -20 degrees C and +52 degrees C.


      MIL-STD-810F
      Method 512.4
      Immersion - The case is submerged in a basin of water to a depth of 1 meter (3.28 ft) to the top most part of the case for 30 minutes. The case is heated to 10 degrees F higher than the temperature of the water.
      IP 67 ingress protection
      6- Total protection from dust
      7- Protected against the effects of immersion between 15cm (5.9”) and 1m (39.37”)

      .
