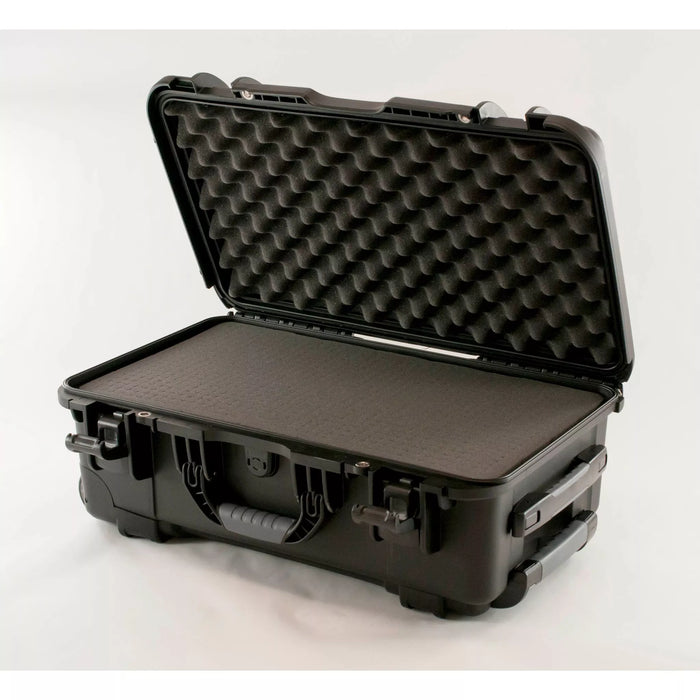

735 Wheeled Customizable Equipment Case (20.5"x11.3"x7.5")
Dustproof, waterproof heavy duty case with 1/2" cubed pluckable foam. Remove foam by tearing or using a cutting tool to create needed space. This case has two durable wheels and a "telescoping" handle for easy use. Designed to fit in standard airline overhead compartments.
Product Features and Benefits
- Waterproof
- ATA Impact certified
- Pluckable 1/2 foam cubes to create needed space
- Weight: 11.6 lbs
- Inside Dimensions: 20.5" x 11.3" x 7.5"
- Outside Dimensions: 22" x 14" x 9"
- Accepts 2 padlocks
- Dustproof
- Stainless steel hardware prevents rust
- Double movement latches prevent accidental opening for added protection
- Lifetime warranty
We can do custom foam inserts for specific items! Prices are quantity dependent. Call us at 763-230-3911 to discuss.
Compatible Locks
Certifications
Waterproof IPX7
Dustproof IP6X
Impact ATA 300
Drop Test ASTM D-4169 CC-18
Vibration STM D-4169 DC-18
Rainfall ASTM D-4169 DCc-18
Immersion MIL-STD-810F
Descriptions of Tests
ATA Specification 300 Category 1
Airline transport container suitable for a minimum of 100 airline trips
Impact Resistance Test; samples were exposed to impact using a bar weighing 13.2lbs with a hemispherical end of 3.2cm. Bar was dropped with its longitudinal axis vertical on to each sample’s weakest point from a height of 0.5m. Samples were conditioned to a temperature of -20°C before impact exposure.
ASTM D-4169 DC-18
Level 1 Schedule A Handling (Manual)
Drop tests - a series of drops on each edge, corner and face of the case from a height of no less than 48cm(19”) and with loads of 6.8-31.8kg(15-70lbs) determined by case size. Samples were conditioned at lab ambient conditions and then temperatures of -28°C and +60°C for a minimum of 3 hours at each condition.
ASTM D-4169 DC-18
Level 1, Schedule F loose load vibration
Vibration - The cases are tested using test method D-999 to determine the ability to withstand the repetitive shocks occurred during transportation of loose loads.
ASTM D-4169 DC-18
Level 1, Schedule H Environmental Hazard Rainfall
Simulated rainfall for 2hrs at a rate of 10cm/hr (4”). Samples were conditioned to -20 degrees C and +52 degrees C.
MIL-STD-810F
Method 512.4
Immersion - The case is submerged in a basin of water to a depth of 1 meter (3.28 ft) to the top most part of the case for 30 minutes. The case is heated to 10 degrees F higher than the temperature of the water.
IP 67 ingress protection
6- Total protection from dust
7- Protected against the effects of immersion between 15cm (5.9”) and 1m (39.37”)
